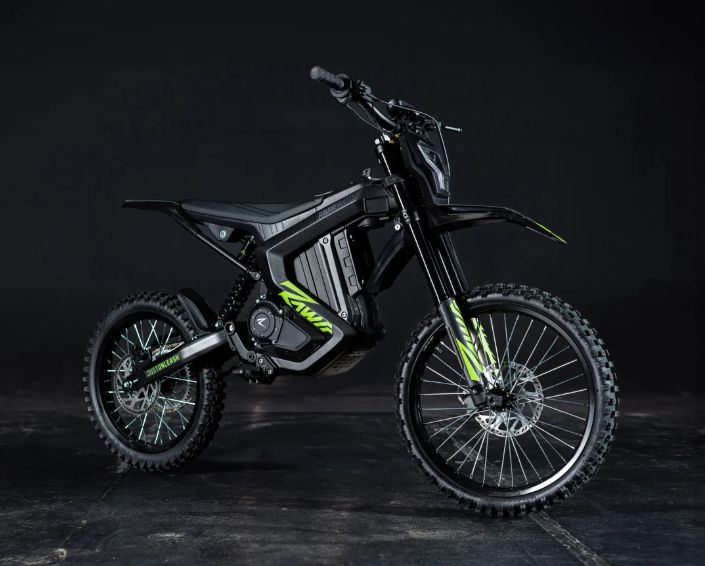

Rawrr Mantis X
SKU 532_sku
$3 699.00
In stock: 1 available
Product Details
Brand: Rawrr
Tech Specs
Measurements
Length
74 IN
Height
43.7 IN
Width
31.3 IN
Max clearance
13.2 IN
Wheelbase
49.8 IN
Seat Height
35 IN
Front Tire SIze
70/100-19
Rear Tire Size
90/100-17
Front Brake Rotor Size
220 mm
Rear brake rotor size
203 mm
Vehicle Weight with Battery
139 lbs
Max Payload
220 lbs
Performance
Top Speed
50MPH
Acceleration
0-19mph: 2s | 0-31MPH: 4s | 0-50MPH: 12.8s
Range
62 Miles Eco Mode; 34 Miles 40mph
Max Torque
191.77 ftlb
Max Motor Power
6500W
Regular Motor Power
3000W
Climbing Ability
45 Degrees
Safety
Motor and Controller IP
IP66
Battery and Wire Connectors IP
IP55
App Controlled Tuning
Yes
Top Speed Limiter
Yes
Kill Switch
Yes
Chain Cover
Yes
Kickstand Sensor
Yes
Brake Sensors
Yes
Electrical
Display Type
LCD
Battery Type
Lithium Ion
Battery Cap
72V 2160WH
Battery Cycle Life
800 Cycles
Charger input voltage
AC110/220V
Charging Time
3-6 Hours
Controller Type
FOC Sine Wave
Drive Modes
Eco / Sport / Race
Mechanical
Brake Type
4-Piston Hydraulic Disc Brakes
Front Fork Travel Distance
8.27 In
Rear Suspension Travel
2.76 IN
Rear Wheel Travel
7.087 IN
Motor Type
Brushless
Motor Cooling Method
Air-Cooled
Power Delivery
Gearbox and Chain Driven
Motor Max Operating Temperature
85 Degrees Celsius
Frame
6061 Aluminum Alloy
Rawrr Mantis X
